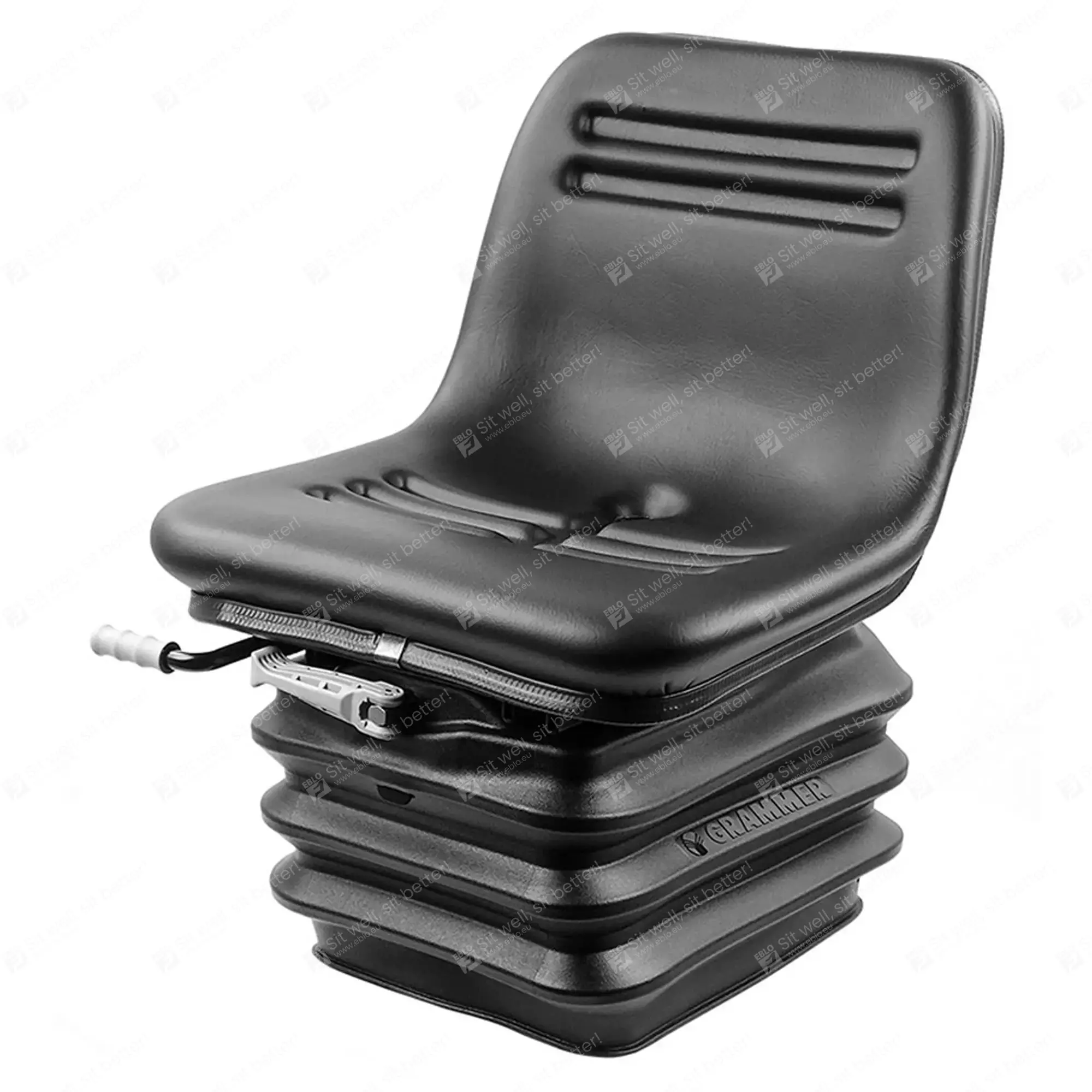

Grammer Compacto Basic XS | 1333859
The Grammer Compacto Basic XS (Manufacturer's number 1333859) seat pvc is a mechanical suspension seat suitable for the very smallest cabs of tractors with a narrow wheelbase. For example, this seat is commonly seen in tractors used in viticulture and fruit growing.
| Suspension travel | 50 - 80 mm |
| Weight range | 50 - 130 kg |
| Weight adjustment | Manual |
| Climate System | |
| Seat upper | 8 |
| Suspension nr. | MSG283 |
| Slide rail | |
| Height adjustment | Mechanical |
| Horizontal suspension | |
| Seat depth adjustment | |
| Seat tilt adjustment | |
| Headrest | |
| Backrest extension | |
| Armrest | |
| Contact switch | |
| Belt | |
| Lumbar support | |
| Backrest adjustment | |
| Horizontal suspension sideways | |
| Shoulder Adjustment | |
| Control Handles | Front side |
| Turntable | |
| Joystick console | |
| Seating height in cm | 25 |
| Seat width in cm | 42 |

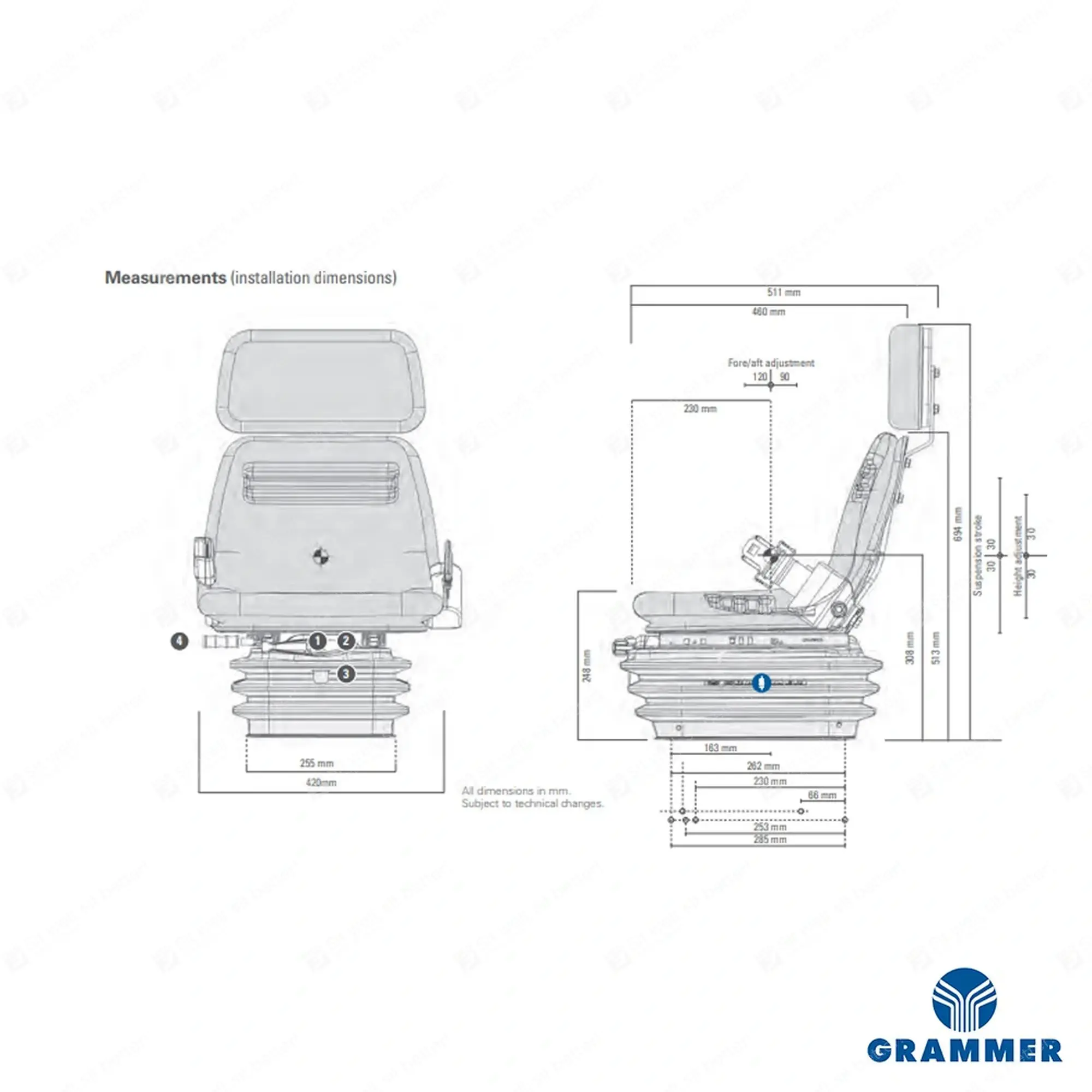

| Mounting width of floor in mm | 255 |
| Material cover | PVC |
| Upholstery color | Black |
| Upholstery color style | Plain |
Thanks to the suspension travel of 5-8 cm, this seat sits comfortably despite its limited installation dimensions (bottom mounting dimension 255 mm). The Grammer Compacto Basic XS has a seat height of 42 cm and a seat height of 25 cm. Operation is via a lever on the front of the seat.
This Grammer Compacto Basic XS tractor seat features durable PVC upholstery. Optional fabric upholstery is also available. Order your seat directly online or contact us for more information!
Pros and cons
Compact seat with suspension and suspension travel
Suitable for the smallest cabs
The seat does not have ergonomic seat cushions
Similar products
| Current product | |
|---|---|
Compacto Basic XS pvc
Grammer
Mechanical suspension seat
Delivery time 10 working days
| |
| Article number | GR.101290 |
| Brand | Grammer |
| Material | PVC |
| Price | € 589,00 Excluding VAT |
)
