Image does not always match standard version
Grammer Actimo XXL seat fabric MSG97AL/722 GR.200310A 1294779 Construction machine seatGrammer Actimo XXL seat fabric MSG97AL/722 2

Grammer Actimo XXL | 1294779

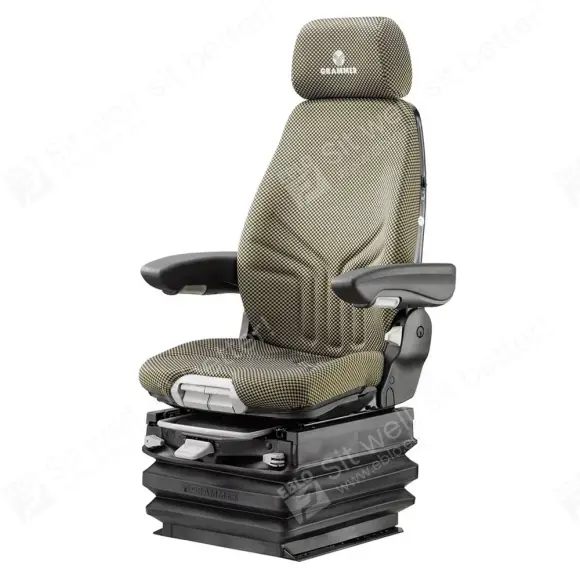

The Grammer Actimo XXL (Manufacturer's number 1294779) is a construction machine seat par excellence. The extra wide, reinforced suspension and the adjustable shock absorber reduce shocks and vibrations to a minimum. In addition, the seat has an air-suspended super-comfort seat with 24 V compressor and is extensively adjustable.

Type
Air suspended
Automatic positioning system
DDS
Suspension travel
80 - 100 mm
Compressor
24v
Weight range
50 - 130 kg
Weight adjustment
Automatic
Climate System
Heating
Slide rail travel in cm
21
Seat upper
722
Suspension nr.
MSG97AL
Slide rail
Height adjustment
Pneumatic
Horizontal suspension
Shock absorber
Yes, adjustable
Seat depth adjustment
Seat tilt adjustment
Headrest
Backrest extension
Armrest
Contact switch
Belt
Lumbar support
Pneumatically adjustable
Backrest adjustment
Horizontal suspension sideways
Shoulder Adjustment
Control Handles
Left + frontside
Seat occupancy detection
Turntable
Joystick console
Preparation for Joystick console
SIP in cm
37.9
Seating height in cm
32
Seat width in cm
49
Track gauge in mm
328
Mounting width of floor in mm
381
Material cover
Fabric
Upholstery color
Black and yellow
Upholstery color style
Blended

The backrest is foldable and adjustable, the weight setting is adjustable (50-130 kg), the seat depth and lumbar support are adjustable. As an option, the Grammer Maximo XXL can be fitted with lateral horizontal suspension, headrest, contact switch and 4-point harness.
