New narrow suspension from UnitedSeats will be available August 2026

This suspension system was specially developed for (operator)seats for classic small- to medium-sized tractors (20–40 years old) from well-known brands such as Massey Ferguson, Ford, Case, Belarus, Fiat, Renault, SAME, Zetor, and John Deere. It is also suitable for other agricultural vehicles, such as telehandlers.

User-friendly and highly customizable

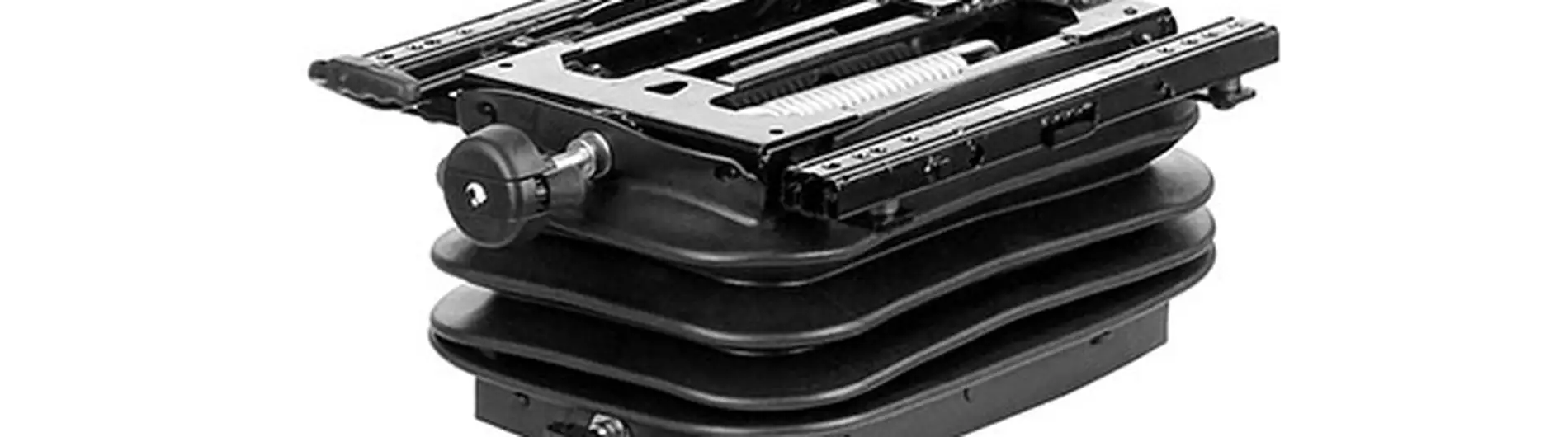

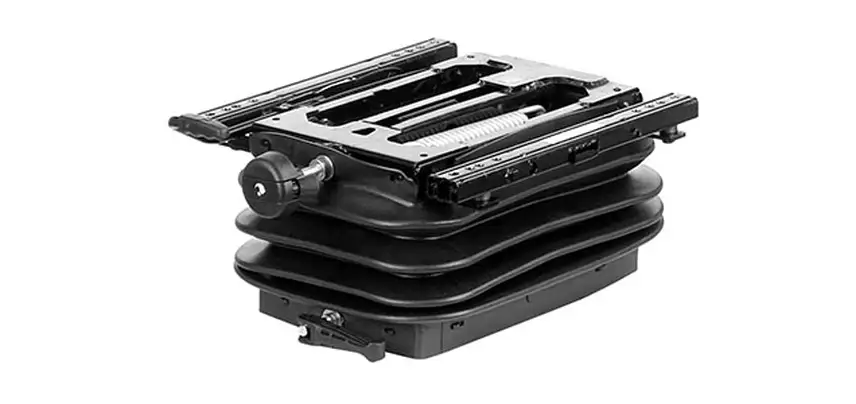

The UnitedSeats MGV80 has dimensions similar to those of the popular KAB11, XH2, and Grammer DS83 bases. Furthermore, the suspension stands out for its user-friendly controls. At the front, there is a dial for weight adjustment (50–130 kg) and a 60-mm stepless height adjustment, allowing the seat to be easily adjusted to fit any driver.

Comfortable suspension for long workdays

With a suspension travel of up to 110 mm, shocks and vibrations are effectively absorbed, ensuring greater comfort during long workdays. Thanks to mounting points spaced 120 mm apart and a sliding rail adjustable from 150 to 200 mm, the suspension is also compatible with many seats and vehicles.

Can be combined with various UnitedSeats seats

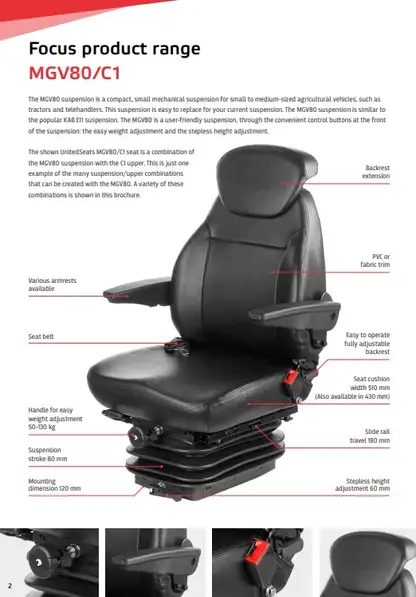

For example, the UnitedSeats MGV8 can be combined with various UnitedSeats seats, including the C1, C5, C6, Mi600, Top35, and Top55. This makes it possible to configure a suitable seat for virtually any application. The MGV80/C1 (pictured here) is one example, but many more combinations are possible, as shown in our MGV80 series brochure. The suspension system will be available starting in August of this year. Please contact us for more information!
